For Hydraulic cylinders go to side bar & click on link.

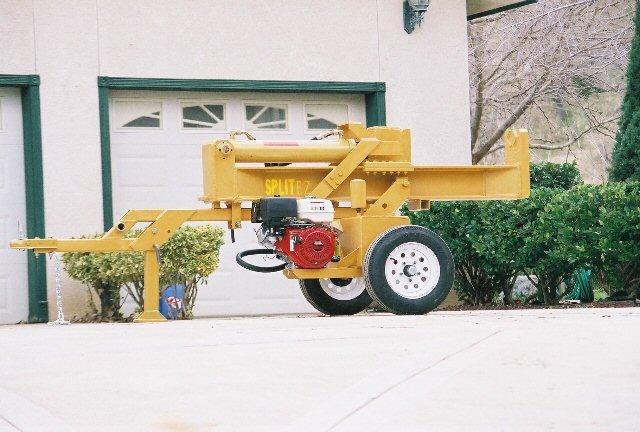

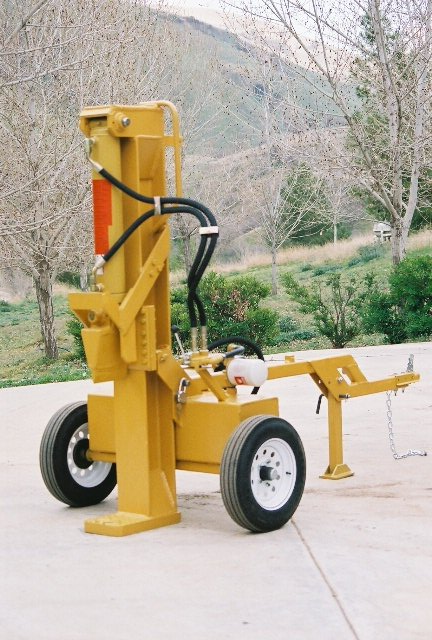

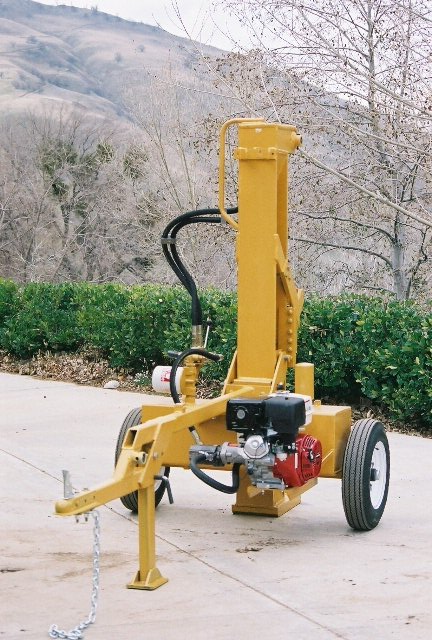

SPLITez 25000 Vertical horizontal LogSplitters our best seller.
-
Prince U.S.A Hydraulic Cylinder Gladiator 5 " bore 24" Stroke 2.500 with 1.500" pins for cross tube ends.
-
Honda or Kohler engine for Power with 22 GPM 2 stage pump.

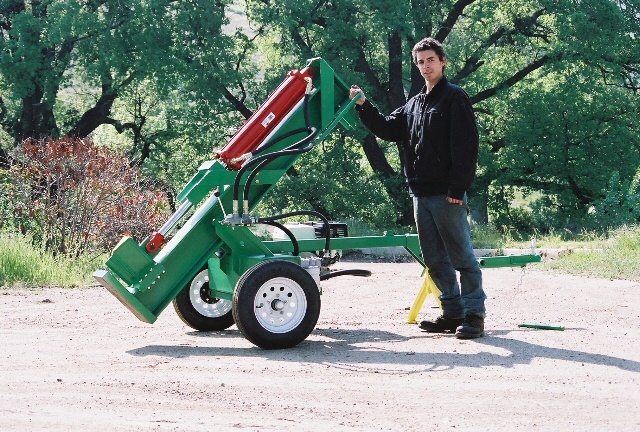

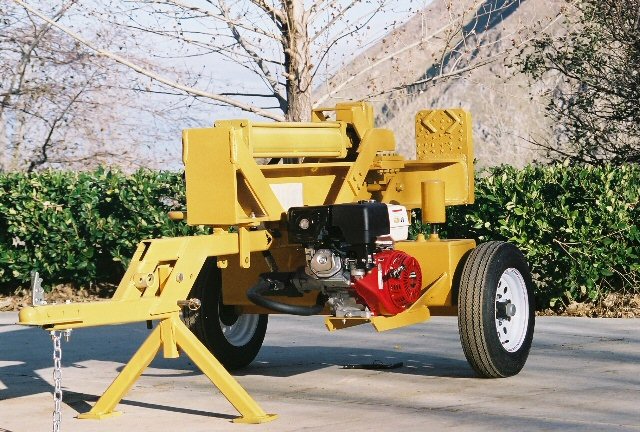

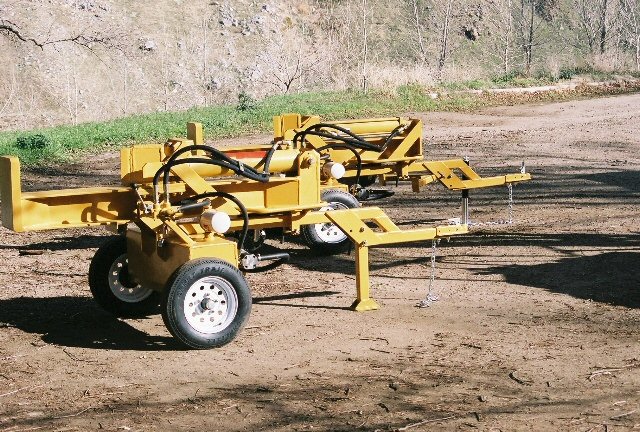

SPLITez 15000 wood splitter.
-
Model 15000 horizontal vertical WoodSplitters.
-
Prince U.S.A Hydraulic cylinder 5" x 24" x 2" shaft royal plate plus tie rod cylinder.
-
Honda or Kohler engine with 22 GPM 2 stage hydraulic pump.
-
SPLITez 9000 horizontal vertical woodsplitter.
-
5 " bore 24" Stroke 2" Shaft Royal plate plus Prince cylinder.
-
GX 270 Honda Engine or Kohler with 16 gallon 2 stage pump.

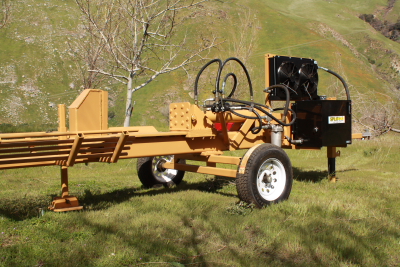

Big Boy woodsplitters Heavy duty Horizontal. 30 to 42 tons, Prince cross tube shaft cylinder 5" & 6" Bore stroke 20"- 24"- 30"- 36" -48".
-
SPLITez Horizontal Big Boy Commercial logSplitter.

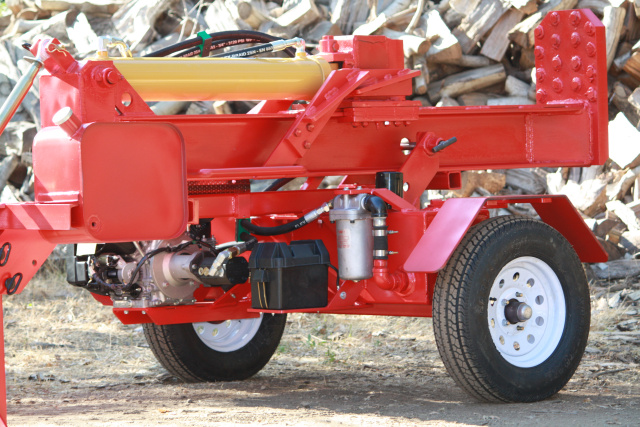

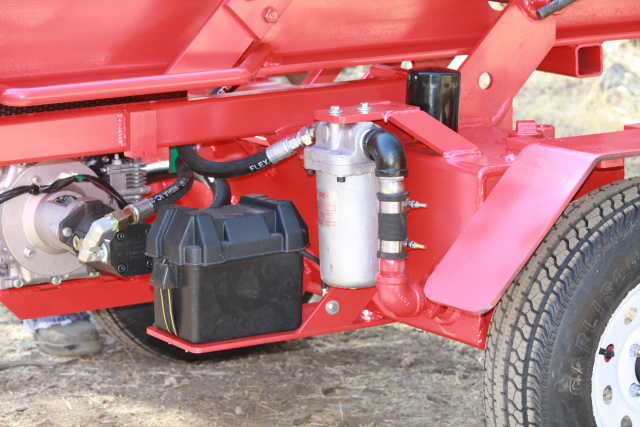

BIG RED, Horizontal vertical, 690 Honda engine, 28 gpm pump + 5 x 30" Prince hydraulic cylinder.
Phone No. 1 - 661 248 5270
-
Motor mount left or right side. ( Right side in picture )
-
Valves Left hand or right side. ( Right side in picture )
-
Vertical horizontal brand name SPLITez.
-

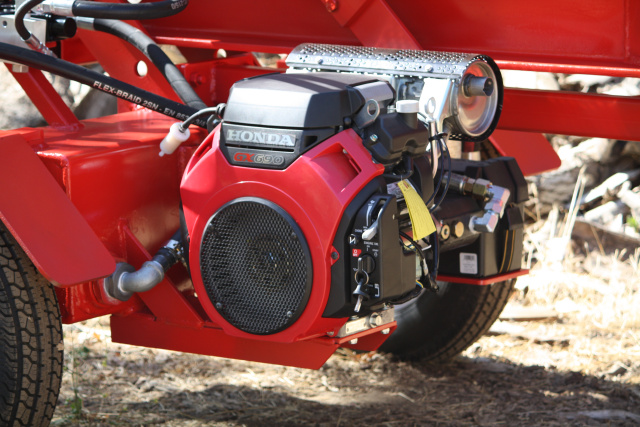

690 V twin Honda.
-
28 GPM 2 stage pump.
-
Prince Gladiator Hydraulic big bore cylinder 5" bore cross tube shaft or option of 6" hydraulic cylinder.
-
Large reservoir.
-
Dump valve on return stroke less load on valves.
-
Shipping weight of BIG RED 2100 Lbs.
Click on models below. For more information, options and price of units.
CLICK HEAR BIG BOY.
Model-25000 Click Here .
Click Here Model-15000 .
Click Here Model-9000 .
Big Red Click here
Kits to build your own or parts to repair wood splitters. Hydraulic cylinders, Pumps, valves, filters, engine kits.

More information click here .
Used LogSplitters for sale .
Patent pending SPLITez pump system will increase hydraulic cylinder cycle time.
Splitez system Test 1*
A SPLITez pump system with a 5 x 24 x 2.5 shaft with no load is at a absolute amazing sizzling 6.1 second cycle time with our revolutionary new system. Retract time with our system is a blistering 2.6 sec.
Splitez system Test 2 *
5" x 24" x 3.5" Shaft 5.3 sec. cycle time with no load. Retract time 1.8 sec.
Splitez system Test 3 *
4" x 24" x 2" Shaft 3.9 sec cycle time with no load. Retract time 1.7 sec.
* Testing was done with 40 Hp Kohler engine no load and we were conservative on pump size pump is rated at 3000 PSI.
Ask the competition if they can match that kind of performance.
System will be for sale as a kit or as a option on Big Boy models. This is only one system we can go bigger or smaller depending on HP.
If you are looking for fast Hydraulic cylinder cycle just call we can build you a pump system.
1-661 248 5270 Phone .
SPLITez Quality logSplitters are built to perform perfect.
-
Power by a Honda or Kohler gas engine and hydraulic cylinders.
-
Diesel engine and electric 3 phase motor are another option.
-
Available Big Oil coolers 12 volt and 3 phase electric.
-
Trailer units or stationary.

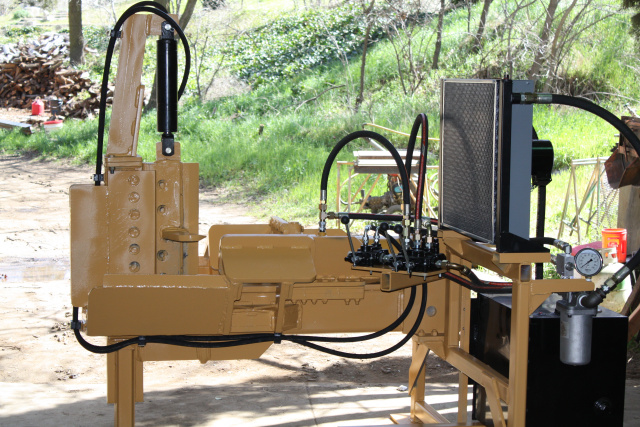

Wedge drops below - splitting table for splitting two ways raise wedge with ram splits - 4 ways can be trailer mount with gas engine or diesel, strokes up to 60".
Firewood will center for splitting, This machine has only a 12" firewood opening. Power by a Prince hydraulic cylinder. Custom built .
Shipping weight 2800 lbs without oil or electrical 3 phase motor .
|
