P & J Commercial Products
661 248 5270 www.splitez.com
                  Log Splitter parts hydraulic pumps valves cylinders
       Log splitter accessories,  hydraulic two stage pumps pto tractor pumps cylinders valves.





    At  P & J Commercial Products We Build SPLITez Log Splitters plus sell parts and kits for building or repairing your wood splitter.



    New not rebuilt 22 GPM Two Stage $195.00 or 28 GPM $199.95  4" x 24" x 2" welded cylinder   $ 179.95

   Scroll down there a lot to look at or click on link.



   Big red Log Splitter www.splitez.com

SPLITez  Log Splitters  U.S.A Made           Click here

Logsplitter  Pumps 2 stage                                     Click Here

Engine To Pump Adapters                                      Click here

Log splitter Hydraulic cylinders                                Click Here

PTO Hydraulic pumps as low  $ 299.00                    Click Here.

Prince Valves , D tent , Auto cycle Control valves     Click Here.

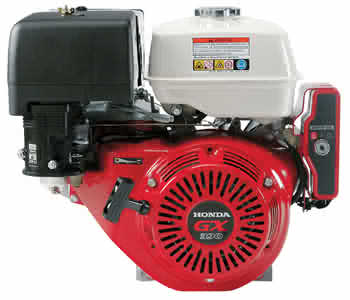

Honda & Kohler Engines and pump kits                    Click Here.

Hydraulic Reservoirs                                                Click Here





 Phone  1- 661 248 5270


 New Item weldable Wedge up to 18 Long 1" Thick X 6" Wide  Click Here For More Information

Built by Splitez log splitter wedge & wood splitter wedges




 SUPER BUY

           Import log wood splitter D Tent valve 3/4


 Log/Splitter  Detent valve   season  =LOW DOLLAR DEALS =

  EZ  LSV-2      3/4" Inlet & Outlet  With   3/4"  working ports          $ 59.95

  EZ  LSV-1      3/4" Inlet & Outlet  With      1/2"  working ports          $ 59.95
 =Note Port A is next to handle. A is the power working port. Port B is shaft end return port.= All threads are NTP

  We also carry Prince valves & Cylinders listed below.



     16 GPM woodsplitter log splitter 2 stage hydraulic pump

Low Price for Aluminum pump

Special Buy

EZ-1092-A      2 - Stage   11  GPM  PUMP        Price   $ 116.00   HP 5.5*

EZ-1093-A      2 - Stage   13  GPM  PUMP        Price   $ 119.00   HP 6.5*

EZ-1094-A      2 - Stage   16  GPM.  Pump        Price   $ 128.00    HP 8 *

1" Tube inlet 1/2" NTP outlet

 Option 3/4" NTP pipe thread on inlet instead of tube add $ 7.00 to price for 11 GPM

* Recommended Engine HP for size of pumps.


22 and 28 GPM Two stage log and wood splitter pumps                              WOW Price Buster

      1" NPT INLET  & 3/4" NPT OUTLET Cast Iron

EZ-22 GPM Two Stage pump                   Price   =$ 195.00 =  12 HP *

EZ-28 GPM Two Stage pump                    Price   =$ 199.95 =    16 HP *



  * Recommended Engine HP for size of pump


 Dyn WoodSplitter Pumps





 Cast Iron Dyn 2 Stage  3000 PSI.  1"  Tube  Inlet 1/2" NPT outlet with 1/2" shaft 4 bolt  face

 Option If you need a 3/4" NTP pipe thread on inlet instead of tube add $ 7.00 to price

EZ-DY-  9     2 - Stage    9  GPM.  Pump        Price     $ 119.00    HP 5 *

EZ-DY-11     2 - Stage  11  GPM.  Pump        Price     $ 119.00    HP 5.5 *

EZ-DY-13     2 - Stage  13  GPM  Pump         Price     $ 125.00    HP 6.5*

EZ-DY- 16    2 - Stage  16  GPM.  Pump        Price     $ 130.00    HP 8 *

1" Tube inlet 1/2" NTP outlet



 1 661 248 5270 Phone

Haldex  two stage log splitter pump 16 gallon per min.

         Haldex  Barnes  2 - Stage pump 1" Tube inlet 1/2" NTP Outlet

NO.250

EZ-1 011    2- Stage Pump   11 GPM.                 $ 145.00 ( Min 5.5 Hp )

EZ-1 014     2- Stage Pump   13 GPM                 $ 159.00 ( Min. 6.5 Hp )

EZ-1 012     2- Stage Pump   16 GPM                 $ 168.00  ( Min. 8 Hp )

EZ-003 Counter clockwise roation 11 GPM

1/2" NTP  Inlet  1/2" NTP  Outlet    $ 178.00 ( Min *HP 5.5




       2 Stage pumps

22 GPM Haldex hydraulic log splitter pump www.splitez.com

      Haldex Barnes 22 gallon per min  pump  1" NTP Inlet 3/4" NTP outlet -

  22- GPM  2 stage   250       $326.95    ( 12 Hp engine )

Part NO.       EZ-1022

250-022




 28 GPM Barnes hydraulic log splitter wood pumps

   Haldex Barnes  28 gallon per min pump   1" NTP inlet 3/4" NTP outlet-

 28-GPM   2 stage pump    250          $ 417.95    Hp 16

Part NO.     EZ-1028

250-028





4 bolt log splitter adapter



Adapter as low as $ 35.97 & FM Brackets starting at $ 27.00


Jaw couplings sets

Jaw couplings Mix & Match  $ 50.00 3 piece set


 PTO Tractor pump log splitters  http://www.splitez.com



      Self adjusting wear plates both sides - Roller bearings - Internal spline with thru-drive feature - High tensile cast iron end plates - Slips on tractor PTO- Two out let ports with plug to seal unused port.

   All pumps - Max RPM 540 - Max 2250 psi - Port in 16 SAE - Out 12 SAE - Shaft 1 3/8" Dia 6 Tooth.

  A relief valve, external to the pump must be provided in the system .




Relief valve prince

Relief valve  adjustable from 1500 - 3000 PSI 3/4 NTP threads

Part No. RV- 2H   Price $ 39.95

Hose Adapters included with pump

PART #252

DISPL

INPUT HP

GPM at 2000 PSI

WEIGHT

PRICE

EZ-1567 *B

3.6

8.8

7.2

33#

$ 339.00

EZ-1557 *B

5.7

13.8

11.6

36#

$ 339.00

EZ-1555 *P

7.8

20.4

16.9

38#

$ 319.00

EZ-1560 *P

9.9

21.8

21.0

40#

$ 319.00

More  540, 1000 RPM & Prince PTO click here



  *Torque arm bar kit required to keep  PTO pump body from roating during operation

    Part No.     EZ -  PTOAB  $ 39.95

PTO Arm Bar Kit For PTO Tractor pumps


Dump Valve

         Valve on return stroke will open and  helps with over load of valve less wear and  heating of hydraulic oil will work with Prince  autocycle valves and all D Tent Log Splitter valves.


30 GPM  $ 119.95

65 GPM  $ 197.95

Shown with all the options hose, fittings and LS 3000 2

dump valve log splitter parts for wood      log splitter parts dump valve for wood splitter

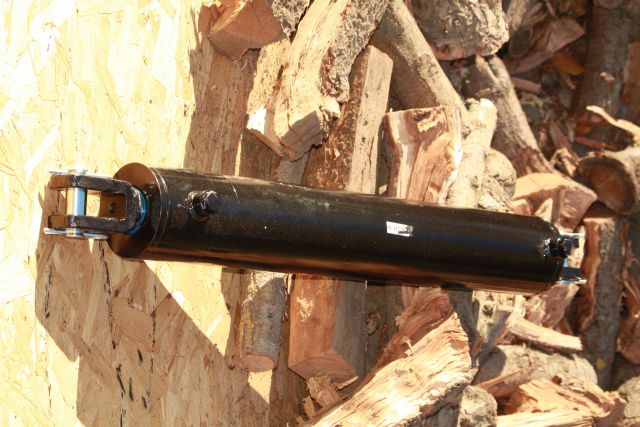

4" Bore  x 24" Stroke 2" SHAFT 3000 P.S.I
EZ 4024 CW =  $ 179.95



4 x 24 x 2 clevis weld hydraulic ez4024cw

Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Clevis Pin Diameter Weight (lbs)
Retracted Extended
4" 24" 34.25" 58.25" 2" SAE 8 1" 61






Hydraulic Cylinders Maxim 3000 PSI Welded Series

    3000 PSI  Welded Cylinder Clevis ends   4" Bore x 24" Stroke x 2" Shaft

 Part NO.  EZ Max 4242   Price $ 250.95



4" x 30" x 2"  EZ MAX     4302  Price  $ 280.00




300 psi hydraulic cylinder import log splitter 2

2500 psi Tie Rod    4"X 24"X 2" Shaft

EZ-4024 T-2            Price   $149.00



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Clevis Pin Diameter Weight (lbs)
Retracted Extended
4" 24" 34.25" 58.25" 2"

1/2" NPTF or-sae 8

1" 70





4 inch Bore 24" Stroke 2" shaft Pin size 1.500" on cross tube 3000 PSI

 Part NO.  EZ 4024 BW   $ 178.00



3000 psi Hydraulic cylinders sold by Splitez import cross tube












log splitter parts cylinder



  • 4" Bore x 24" Stroke x 1.750" Shaft
  • Pin 1.250" Base End Weled on
  • 1/2" Pin on shaft End of Cylinder
  • Retract  32.5" Pin to Pin Center
  • Extended 56.5"
  • SAE Port Size N0. 8

Part No.  EZ 4024 LS -1.75   $ 250.00 Shipping Weight 61 Lbs.




log splitter cylinder MTD Yard machine troy built





  • 4 1/2" Bore x 24" stroke x 1.750" shaft
  • Pin 1.250" Base End Weled on
  • 1/2" Pin on shaft End of Cylinder
  • Retract 32.5"
  • Extended 56.5"
  • Sae Port size N0. 8

Part No.  EZ 4524LS -1.75     $ 287.00  Shipping Weight  70 Lbs





wood splitter parts  hydraulic cylinder



  • 5" Bore x 24" stroke x  2" shaft
  • Clevis Pin 1.250" Base End Weled on
  • 1/2" Pin on shaft End of Cylinder
  • Retract 32.5"
  • Extended 56.5"
  • SAE No. 8 Port Size

Part No.  EZ 5024LS-2   $ 377.00 Shipping Weight 83 Lbs







 5 x 24 x 2.250 Shaft Tie rod hydraulic  cylinder 3000 psi



BIG SHAFT 24" STROKE

  Pin Size 1 1/4 " 3000 psi Tie Rod      5"x 24" x  2.250" Shaft

 NO.214-428

 EZ-1428    Sale Price       $ 419.00      Ship Wt 127 Lbs.



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 24" 36.25" 60.25" 2.250" SAE 12#

  127






 5 x 24 x 2.250 Shaft Tie rod hydraulic  cylinder 3000 psi



BIG SHAFT 30" STROKE

  Pin Size 1 1/4 " 3000 psi Tie Rod   5"x 30" x  2.250" Shaft

 NO.214-430

 EZ-1430    Sale Price       $ 465.00      Ship Wt 145 Lbs.



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 24" 42.25" 72.25" 2.250" SAE 12#

  145

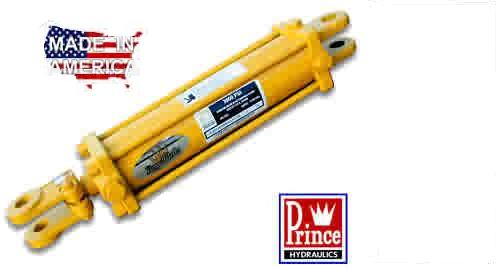

wood splitter parts hydraulic cylinder prince



         PMC- 50242

Our price $ 425.00   5" x 24" X 2" Shaft  Prince Tie Rod



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 24" 36.25" 60.25" 2" SAE 10#

  113






5" Bore x 30" Stroke  x  2"  Shaft  $ 465.00 Prince U.S.A

Tie rod cylinder 5 x 30 x2" shaft





  MFG. Part No. B500300ACDDAO7B

         PMC- 50302  Cylinder  3000 Psi painted yellow

Our price $ 465.00   5" x 30" X 2" Shaft  Prince Tie Rod



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 30" 42.25" 72.25" 2" SAE 10#

  129








  • log splitter parts Prince hydraulic cylinder






MFG. Part No.

  PMC 21024  Prince  Gladiator cross tube 3000 psi  1-1/2"  pin holes

Our Price  $ 599.00    5" Bore 24" Stroke 2 1/2" Shaft

                      8 or more  Call

Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 24" 35" 59" 2.500" NPT 3/4"

  115








  • welded hydraulic cylinder log splitter






PMC 21030 Prince Gladiator cross tube 3000  psi



Our Price  $ 650.00    5" Bore 30" Stroke 2 1/2" Shaft

                      8 or more  Call



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 30" 41" 71" 2.500" 3/4" NTP

  130








  • hydraulic cylinder prince 5 x 36 x 2.5  logsplitter parts






  PMC 21036  Prince Gladiator cross tube 3000 psi

 Now  $ 699.00    5" Bore 36" Stroke  2 1/2" Shaft

              8 or more Call



Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
5" 36" 47" 83" 2.500" 3/4" NPT

  145








  • hydraulic cylinder splitez







  PMC 22024  Prince Gladiator Cross Tube 3000 psi

 Now  $ 699.00    Bore 6" Stroke 24"  Shaft 3"  42 Ton

                   8 or more Call





Bore Stroke Closed Pin Center Distance Shaft Diameter Port Size  Weight (lbs)
Retracted Extended
6" 24" 35" 59" 3" 3/4"  NTP

  150




 Prince LS 3000 2 Log wood splitter D-Tend Valve


               Prince Log splitter D-Tent valve   Made in the U.S.A

          NTP 3/4" in and out  with 3/4" working ports they are the large out let ports     25 G.PM 2750 P.S.I

         LS 3000 2  Big Port  Our Price  $ 89.00

          NTP 3/4" in and 3/4" out  with 1/2" working ports      25 G.PM 2750 P.S.I

         LS 3000 1  Price  $ 87.00




Prince Rd513ce5a4b1          NEW ITEM Prince





     Part  No.     RD513CE5A4B1 30 G.PM  3000 P.S.I

 D-Tent logsplitter valve with power beyond port  NTP 3/4" in and out  with 3/4" NTP working ports 30 GPM and adjustable to 3000 PSI for Big pumps

   Price $190.00 Each




 Prince LSR-3060-3  Rapid Extend wood splitter valve.
Fast cycle time from a small single stage pump
Pressure release detent on retract

LSR-3060-3 Rapid Extend woodsplitter valve Prince U>S>A


The Prince LSR-3060-3 Log Splitter valve has a fast   ( RAPID EXTEND HIGH SPEED MODE FOR LOG SPLITTERS )

Has average of 50% reduction in amount of time it takes to get a fully retracted cylinderextended.  Built to reduce system cost by working with a less expensive single stagepump. When splitting wood and the need for that extra splitting  force , the LSR -3060-3will allow the user to manually shift from high speed mode to high splitting force  mode. Advantage of the LSR eliminates the need for a Hi-Lo  pump, reduces the overall cost of building  a typical wood splitter. Extend flows of up to 25 GPM with inlet flow of only 4 GPM.

NOT FOR USE WITH TWO STAGE PUMPS  HI-Lo

 NTP 1/2" in 1/2" outlet ports    3/4"  NTP working ports
LSR -3060-3  Price $ 109.98




 RD512CA5A4B1 splitez.com



     Part  No.     RD512CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center 1/2" NTP Working ports

 Our price $ 127.98

                       8 or more $ 110.00 each

   Part  No.     RD513CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center 3/4" NTP Working ports

Closed Center And Power Beyond Capability

 Our price $127.98

                      8 or more $ 110.00 each


Prince 3 spool valve www.splitez.com



                             RD532CCCAAA5A4B1

3/4" in & out NTP 1/2" working NTP

25 Gpm 3000 PSI Directional control Valve, three spool All spools 4-Way/3-Pos Spring Center Closed Center And Power Beyond Capability. 3000 PSI Max Pressure

Price                                      $279.00

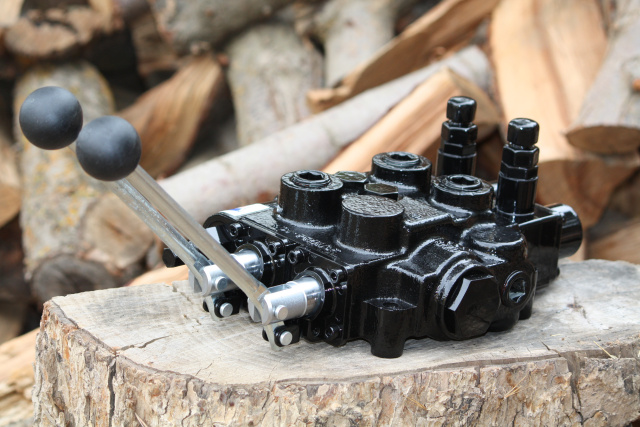

Prince hydraulic 2 spool valve       Prince Control Valve- RD522CCAA5A4B1

2 Spool Valve- 25 GPM -4- way/3-pos-spring center both spools. Great valve for log lift and 4-way wedge. 3/4" NTP in and out ports,1/2"  NTP working ports

 Shipping weight 23 LBS    Our  Price   $ 193.00

                                     8 or more $ 180.00 each






 Prince hydraulic auto cycle valve RD523MMEE5A4B1


Prince  Auto cycle valve

RD523MMEE5A4B1

     This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back

  This Auto Cycle Valve is convertible to a power beyond with  a optional conversion plug

 Our Price $ 274.95       #23

3/4" in out & working port NTP






Auto Cycle

Auto Cycle vale Prince RD523MMEE5A1A1





RD523MMEE5A1A1

This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back

 Not a Power beyond valve Down stream valve.

3/4" in out & working port  NTP

Auto Cycle valve   Price $ 256.95








Prince control valve RD522ECAA5A4B1



          Prince  Control Valve RD522ECAA5A4B1

      4 Way 3 Position open center motor spool valve

      Power beyond valve

    This valve can be used to control a bi-rotational motor or a double acting cylinder. In  neutral the work ports are open to the return. This allows a cylinder to drift or a motor to  coast to a stop. In neutral the oil goes through the open center passages to the next spool  of multi-spool valve, 3/4" in  out & 1/2" NTP  working ports

Price    $159.49

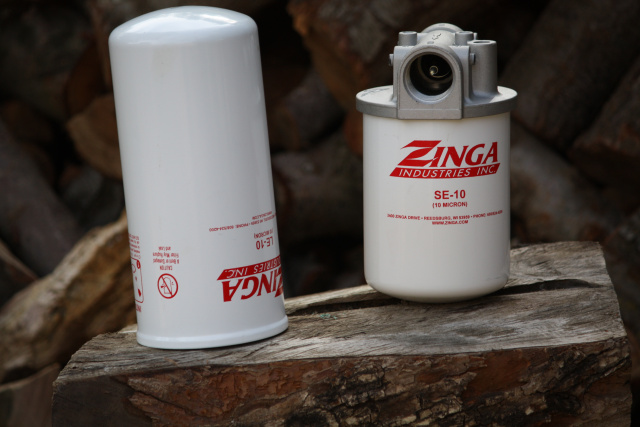

    Hydraulic return line filter with head large

          NTP  1-1/4" in and out ports comes with filter & head   FWH70G

$ 49.00

$   57.00 For large filter with head

            Replacement filiter

                            F70G    $ 22.95

                             Large Filter  $ 30.95



  Wood splitter hydraulic filter 1 1/4

More Info click here



1-661-248-5270   Phone




BIG FILTER AT A LOW PRICE

Filter Assembly  10 Micron 25 PSI Bypass

150 PSI working pressure

Flows up to 50 GPM on return and 15 GPM for suction line applications.

1-1/4" inlet and outlet

Four 1/8" Gage Ports

 EZ HFA2-Series             Filter Assembly  $ 39.95

 EZ U3l3FE                      Filter Only           $ 18.95










Lens Hydraulic Filter NTP 1-1/2 " Inlet 1-1/2 Outlet

$139.00 (  No gage port )




           Externial suction 25 GPM and 3

         In tank suction strainer metal Externally Mounted

   2" male  to 1-1/4"  NPT Port size for pumps up to 25 gallon per min

       SS225       $22.00

       SSBP225    $32.00  With Bypass



   3" NTP Male to 2" NTP port size up to  50 Gpm

      SSBP330                 $ 46.00 With Bypass






         Spindles 3500 lbs  1 1/4 Inch square end $19.00 each

1/ 1/2


    Hubs for spindles 5 ON 4 1/2"  3500 Pound with bearings lug nuts caps

              3500 HUB 5 BOLT  3500 lbs Hubs  price/ each    $ 48..00






        Tires and rims  Made in the U.S.A  530 x 12 approx 21.5" tall  5 lug on 4-1/2" Load Range C  Price $ 64.00 Each



        ST175/80D13LRB Sport Trail TL 5 lug  on 4-1/2" center Price $89.00 Each






      *Also have combinations for  5 1/2 hp with 11 gpm,  6 1/2  hp with 13 gpm  and 9 hp with 16 gpm  & 28 gpm pumps.   click here

         Save On Splitez Log Splitter Parts and kits

   Engine, pump, coupling, adapter, valve, filter and hydraulic cylinder



Pump to engine

 Prince log splitter valve





Log splitter pump 2 stage 22 gal per min Barnes hydraulic pump

 Tie rod cylinder 5 x  24 x2" shaft













 1 -  Honda GX series 389  Engine Or Kohler CH 440

           Kohler Ch 440 14 Hp

 2 -Two stage 22 GPM PUMP High/low pump.

             Inlet port           Outlet port         Gallons per min.

                   1"                     3/4"                        22

 3 -  Pump to engine bracket

 4Engine to pump couplings Made by Magnaloy

 5Prince Tie Rod Royal Plate Hydraulic Cylinder 3000 psi  MADE IN U.SA

    Bore    Stroke      Rod Dia      Pin Dia

      5"         24"           2"              1-1/4"

 6 - Prince D-Tent valve  LS 3000-2  MADE IN U.S.A Inlet & outlet ports  3/4"  Working Ports   3/4 "

 7 - Return filter

       In & outlet ports -1 1/4"

       Flow up to 70 G.P.M



      Honda Engine Part No. LSPKIT-                      $ 1498.00



      Kohler Engine Part No. LSPKIT  CH 440 - 22   $ 1498.00






   Options for 15000 kit  Add price to kit  $1498.00  plus


1-  Halex Barnes 22 GPM  two stage log splitter pump add $195.00



2 -  Electrical Start Honda engine 389 cm3 Add  $195.00

 log splitter parts hydraulic cylinder



 3 Prince hydraulic cylinder   Gladiator 3000 PSI    MADE IN U.S.A

Stroke      Bore    Rod Dia.        Retract       Port             Pin

 24"            5"         2-1/2"            35"         3/4" NPT       1 1/2"

        This cylinder is used on our Splitez   25000 model

                 A - 24" Stroke Gladiator

                        Option  Add  $ 299.00

                         B- 30" stroke Gladiator

                        Option  Add  $ 359.00

                C - 36" stroke  Gladiator

                        Option  Add  $ 410.00


   4 - 15000 Wedge with top block  1 1/4"  pin hole for T Rod Cylinder.  Wedge fits 8" H beam as used on our 15000 Model   Bolts and Guide plates

                        Option  Add    $ 425.00




   5 - 25000  Wedge with two top blocks for cross tube cylinder 1-1/2" pin hole. Wedge fits  8" I beam as used on our 25000 Model Bolts and guide plates and two 1 1/2" pin

                        Option Add  $ 475.00


 6- Big Boy Push Plate with top 2 side blocks  for cross tube cylinder 1-1/2" Pin hole. Push plate fits 10" wide mill plate 1" thick or will build for 8 " wide H Beam  Bolts and guide plates and two 1 1/2" pin

                        Option add   $ 555.00




visa mastercard discoveramerican express logo


We  accept Master Card, Visa, Discover Card,

   American Express, and  Checks

        P & J Commercial Products



5500 Digier RD.

Po.Box 1313   Lebec  California  93243

E-mail:     Splitez@Gmail.com

            1-661  248  5270   Phone

                Toll Free Order line    1- 877  SPLITez















                                         Prince hydraulic cylinders & Log splitter parts
