P & J Commercial Products
1 - 661 248 5270 Phone

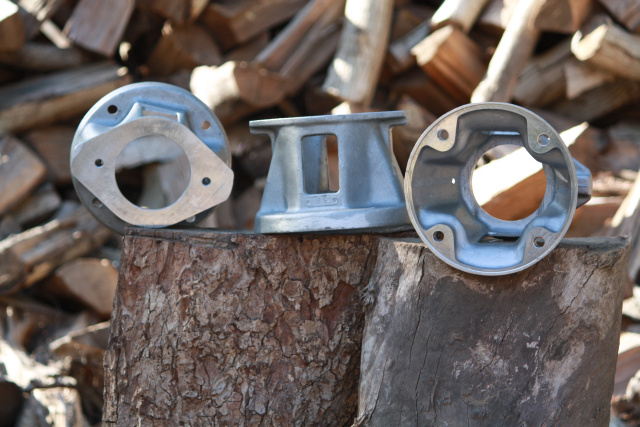

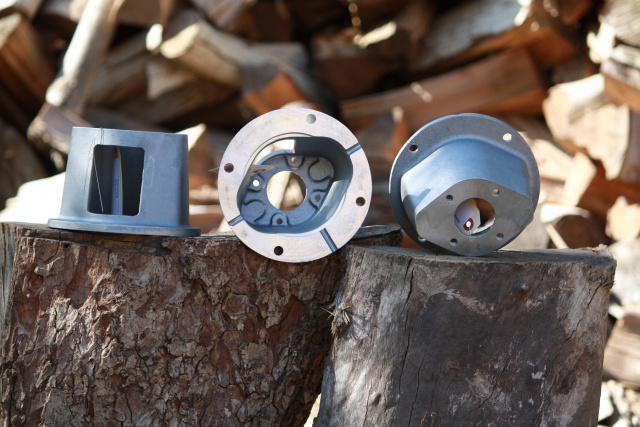

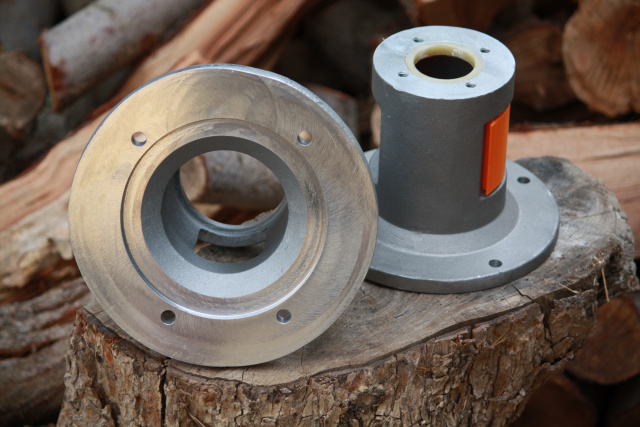

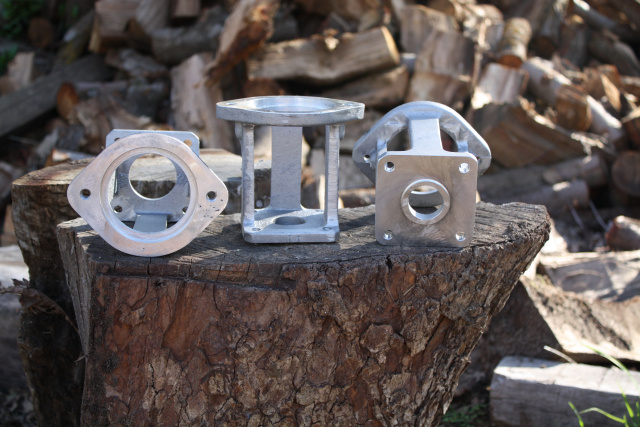

                                         Engine Pump Adapters
Hydraulic Pump Mounting brackets to engine adapters for gas, diesel power and electric motor.



   AdaptersPumpe to engine adaptersfor mounting pumps direct to engine for alignment of pump shaft to engine shaft.

  G Series Adapters for small engines to fit Kohler,  Briggs & Stratton,  Robin, Tecumesh,  Honda,  Grayhound,  BlueMax,  Wisconsin,  Powerhorse,  Vanguard.





   E Series for Electric mortors ,   F Series Foot mounting

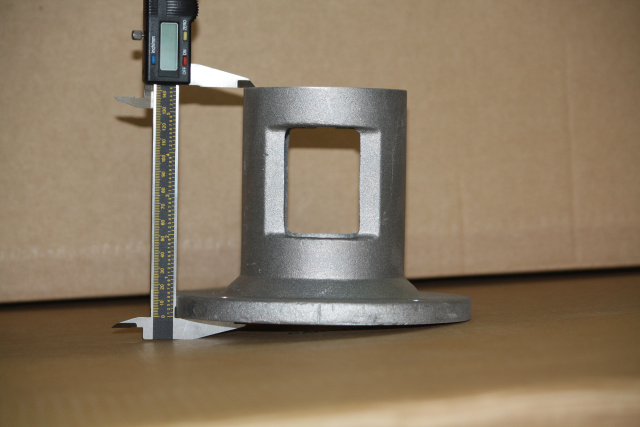

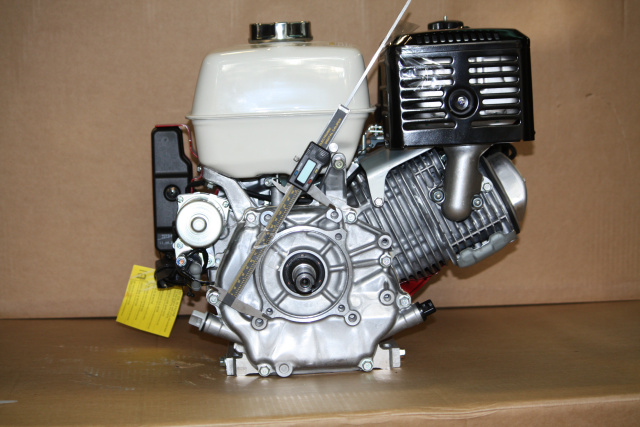

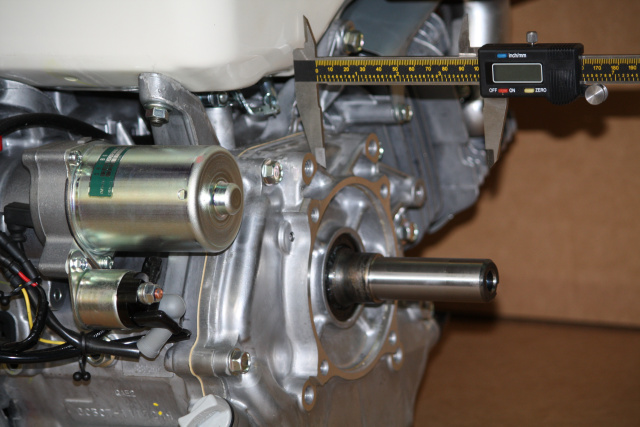

                                    Engine bolt circle                                                      Shaft length bolt hole out



                 Bolt circle                                                                                                     Overall Length or long




( Below is most popular Other lengths are available call )

   Customer is responsible for suitabilty as not all engines have standard mounting holes or shaft length.






1

Hydraulic Pump Mounting Adapter Brackets



6" Long   6 1/2" Bolt Circle on Engine

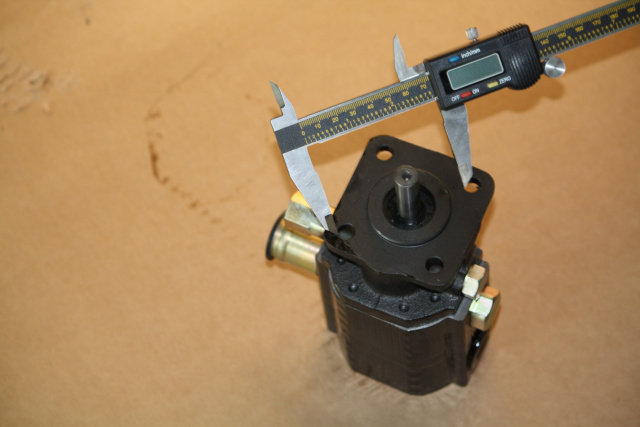

     For 22 & 28 Gallon per min log splitter pumps  or 2 Bolt A Pumps 4.188" bolt circle.

     Fits Engines

         10, 11, 16, 18 HP Briggs STD or IC/IP

         12, 16, 18 Hp Tecumseh

          8 Hp and up including V Twin Honda Engines



Part No. 6-6-750   Price    $ 58.00     Made in U.S.A

MF.  NO. G16 - 134 - 6.00

2

6 1/2"  Engine  Bolt circle   5- 1/8"  long  2 bolt   A   Price  $ 62.00

3

6 1/2"  Engine  Bolt circle   5 -1/2"  long  2 bolt   A   Price  $ 62.00



4

6 1/2"  Engine  Bolt Circle  5.62      long  2 bolt  AA Price  $ 62.00




    5



7" Long Adapter Bracket   7 3/4" Bolt circle on Engine

       For 2 bolt A Hydraulic pumps 22 & 28 GPM wood splitter pumps  bolt circle 4.188".

      For Engines

       17, 19, 20, 21, and 23 Hp Kohler

       16 and 18 Hp Briggs STD or IC

Part No. 7-7-750    Price    $ 71.00     Made in U.S.A

MF. NO.  G17-142-700








6

Kohker engine adapter



6" Long 7 3/4" Bolt circle on Engine

     For 22 & 28 Gallon per min log splitter pumps  or 2 Bolt A Pumps 4.188" bolt circle

     Fits Engines older Kohler

Part No.   6-7-750      Price    $ 68.00     Made in U.S.A

MF. NO. G16 - 135 - 6.00






7



                                                                   honda engine to 4 bolt pump



5  5/8" Long  6 1/2" Bolt circle on Engine

     For 11, 13, 16  Gallon per min log splitter 4 Bolt pumps

     Fits Engines

         10, 11, 16, 18 HP Briggs STD or IC/IP

         12, 16, 18 Hp Tecumseh

          8 Hp and up including V Twin Honda Engines



Part No. 5-58-6-500     Price    $ 58.00     Made in U.S.A

MF. NO. G15  -117 - 5.62


8

Engine pump bracket



4.44" Long Adapter Bracket 3 5/8" Bolt circle on Engine

          Engine Pilot hole Dia 1.625"

        Fits 11, 13, 16  Gallon per min log splitter 4 Bolt pumps  3 5/8" bolt circle

        5 Hp Briggs STD or IC/IP

        5 Hp Robins Industrial engine

        5, -  5.5 and 6 Hp Honda





Part No.  4-358      Price    $ 35.97     Made in U.S.A


8 - A

Pump bracket log splitter honda



MF.  NO.  G10 - 102 - 4.44

For engines with No Pilot hole  G 10 -101-4.44    Price  $ 42.95




9

       2 bolt b adapter







2 Bolt B Mounting Adapter Bracket

6" Long  6 1/2" Bolt Circle on Engine

     2 Bolt B Pumps Bolt circle  5. 75"

     Fits Engines

         10, 11, 16, 18 HP Briggs STD or IC/IP

         12, 16, 18 Hp Tecumseh

          8 Hp Honda and up including V Twin Engines

Part No. EZ- 2-B-M-B        Price Each  $72.00

Mfg. Pt. #G21-204-6.00




10



2 Bolt A  Hydraulic Pump Bolt circle 4.188"

Bolt Circle Engine 3-5/8"    Pilot Dia 1-5/8"   Length  4.69"

Part No. EZ      Price each   $ 40.00

MF.  NO.  G11 - 108 - 4.69


11

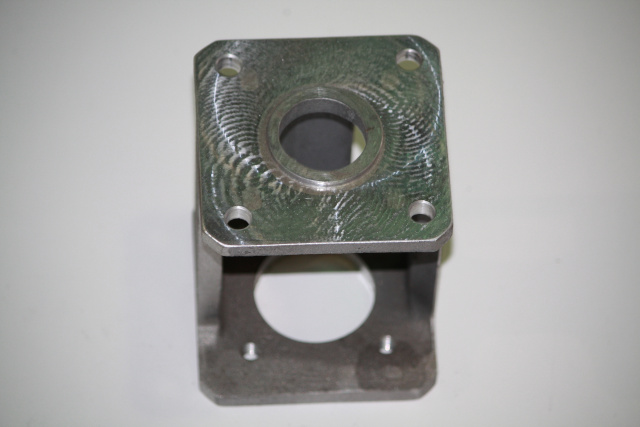

4 bolt foot mounting bracket

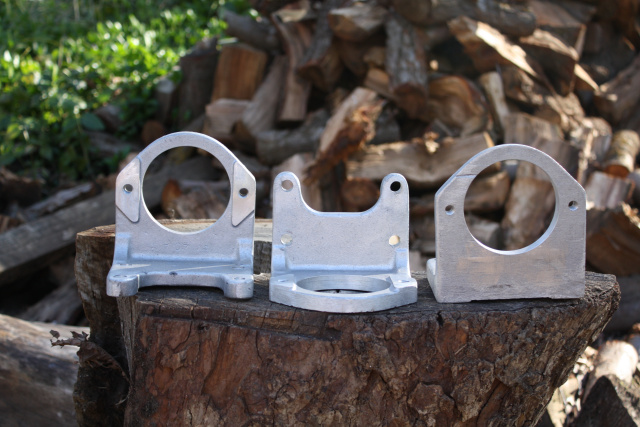

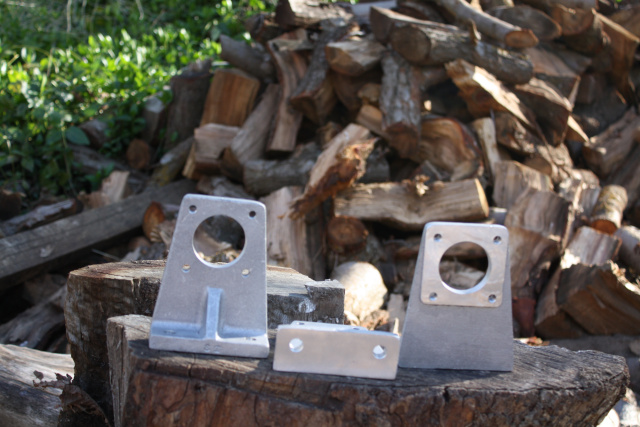

FM Series Foot Mount  Bracket

 4 Bolt F17  pumps Bolt circle 2.828"

 From bottom of foot to pump center line 3-7/16"

Part No. EZ   FM-38-4F      Price each  $27.00

MF. NO.   FM - 38 -4F


12



2 bolt A foot pump mounting bracket                http://www.hydramount.com/images/products/fm-40-a2.gif

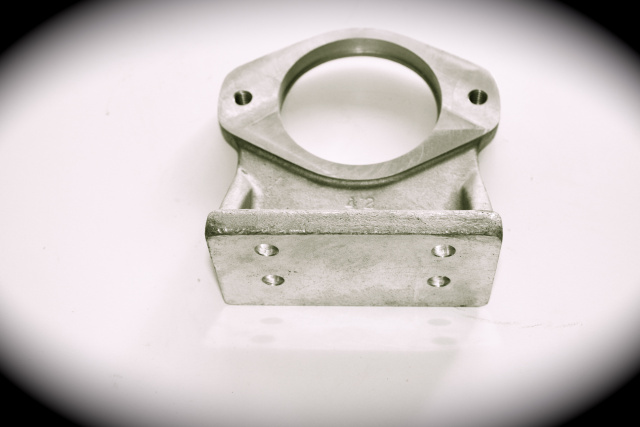

FM SERIES - Foot Mount Brackets

    2 Bolt A  Bolt circle 4.188"

    From bottom of foot to center line of pump bolts   3-1/4"

Part No. EZ  FM-40-A2     Price Each $ 30.00

MF. NO.  FM - 40- A2


13



foot mount pump bracket 2 bolt B 5.75 bolt circle2 bolt b foot mount pump bracket





FM Series

 2 Bolt B Pumps Bolt circle  5. 75"

Part No. FM- 40 - B2    Price each $ 39.95




14

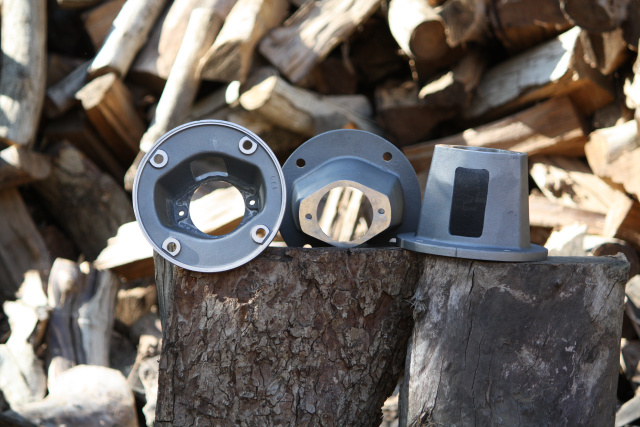

E Series Electric Motor



4 bolt pump electric motor

Fits Electric Mortor Flange   56 C,   143-145 TC

4-Bolt 4F17  Bolt Circle  2.828"

Length face 4.40"

 Part No.  E50-4A       Price Each $ 32.00


15

pump adapter electrical motor

Fits  Mortor Flange    182-184TC,    213-215 TC,    254-256 TC

2 Bolt A pump    Bolt Circle  4.188"

Length face 5.81"

 Part No.  E53-A2       Price Each $ 49.00


16

2 bolt a pump to electric motor

Fits Electric Mortor Flange   182-184TC,    213-215 TC,    254-256 TC

2 Bolt A  pump   Bolt Circle  4.188"

Length face 5.12"

 Part No.  E57-A2L      Price Each $ 49.00


17

2 bolt B electric motor to pump

Fits Electric Mortor Flange   182-184TC,    213-215 TC,    254-256 TC

2 Bolt B pump    Bolt Circle  5.75"

Length face 5.81"

 Part No.  E58-B2        Price Each $ 67.00



18

3 Jaw Engine to pump coupling sets with center spider to direct mount pump to engine

One side fits engine shaft the other side fits hydraulic pump plus the center is a cushioned to drive hydraulic pump

Same coupling set as used on our SPLITez Log Splitters



jaw couplings pump to engine

To order need pump and engine shaft dia plus key size

 1-1/8"  Shaft  Dia.     1/4"    Key    $ 19.95

 1"        Shaft  Dia.     1/4"     Key    $ 19.95

 3/4"     Shaft  Dia.      3/16"  Key    $ 19.95

 5/8"     Shaft  Dia.      3/16"  Key    $ 19.95

 5/8"     Shaft  Dia       5/32   Key    $ 19.95

 1/2"     Shaft  Dia.      1/8"    Key    $ 19.95

  Center Spider                                $ 19.95



Price Mix & Match Price

3 piece set 2 Jaw Couplings and Center Spider $ 50.00

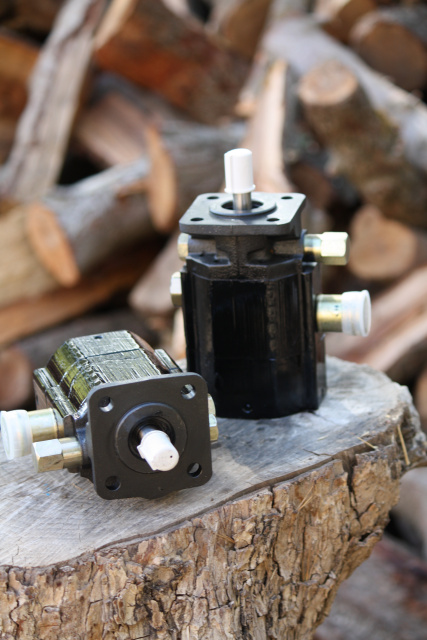

 Complete line of hydraulic pumps in stock for wood splitters single stage and 2 stage

2 stage log splitter pumps









We  accept Master Card, Visa, Discover Card,

   American Express and  Checks

        P & J Commercial Products

          E-mail:     Splitez@Gmail.com

              1-661  248  5270   Phone

                Toll Free Order line    1- 877  SPLITez
