Log Splitter Valves
Replacement Log Splitter Valves



Import log wood splitter D Tent valve 3/4


 Log/Splitter  Detent valve   season  =LOW DOLLAR DEALS =

  EZ  LSV-2      3/4" Inlet & Outlet  With   3/4"  working ports          $ 59.95

  EZ  LSV-1      3/4" Inlet & Outlet  With      1/2"  working ports          $ 59.95
 =Note Port A is next to handle. A is the power working port. Port B is shaft end return port.= All threads are NTP




  We also carry Prince valves & Cylinders listed below.

1

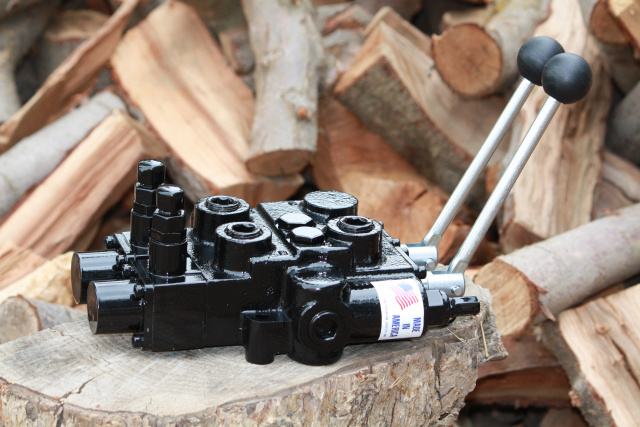

AUTO CYCLE CONTROL VALVE WITH POWER BEYOND

Power beyond Auto Cycle Valve Prince  RD523MMEE5A4B1

Prince  Auto cycle valve

RD523MMEE5A4B1

     This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back



This Auto Cycle Valve is convertible to a power beyond with  a optional conversion plug

  • G.P.M        25

  • WT.           23 lbs

  • 3/4" in out 3/4" working  NTP

 Our Price $ 284.95          24 #

                                                             Auto-Cycle Manual



1-A

AUTO CYCLE CONTROL VALVE WITH POWER BEYOND SAE PORTS



Power beyond Auto Cycle Valve Prince  RD523MMEE5A4B1

Prince  Auto cycle valve with SAE No.12 Working & 12 SAE In & Out Ports

RD525MMEE5A4B1

     This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back



This Auto Cycle Valve is convertible to a power beyond with  a optional conversion plug

  • G.P.M        25

  • WT.           23 lbs

  • SAE 12  In & Out Ports  SAE 12 Working  Ports

 Our Price $ 284.95          24 #

-------------------------------------------------------------------------------------------------------------------------------------------------------



2

Prince  Auto Cycle Valve

RD523MMEE5A1A1 Two spool valve Auto-Cycle



RD523MMEE5A1A1

This valve is used to automatically cycle a hydraulic cylinder-out, back, stop-. When both handles are pulled back the cylinder will extend out. When it reaches full extension, the first spool will go into neutral and begin retracting.  When ram makes  full retraction, the second spool will kit out and the cycle is complete .  To start the next cycle pull both handles back

 Not a Power beyond valve Down stream valve.

 Price $ 286.95            23#

3/4" in & out NTP 3/4" NTP working port

            Auto-Cycle Manual click here



3




 Prince LSR-3060-3  Rapid Extend wood splitter valve

Prince hydraulic control valve LSR-3060-3


The Prince LSR-3060-3 Log Splitter valve has a fast   ( RAPID EXTEND HIGH SPEED MODE FOR LOG SPLITTERS )

Has average of 50% reduction in amount of time it takes to get a fully retracted cylinder

extended.  Built to reduce system cost by working with a less expensive single stage

pump. When splitting wood and the need for that extra splitting  force , the LSR -3060-3

will allow the user to manually shift from high speed mode to high splitting force  mode.

Advantage of the LSR eliminates the need for a Hi-Lo  pump, reduces the overall cost of building  a typical wood splitter.

      Up to 25 GPM from a inlet flow of 4 Gallon per min pump

     Pressure release detent on return stroke

NOT FOR USE WITH TWO STAGE PUMPS  HI-Lo

       1/2" in 1/2" NTP outlet ports working ports 3/4" NTP      11 #

LSR -3060-3  Price $ 109.98

   Hi, a few weeks ago I purchased a Prince LSR-3060 2-speed valve from you, with the intention of using it on a tractor(~7gpm) for a 3pt mounted splitter.  At the time you had asked for an update on how it ended up working out.
    Having finished the splitter I can report it works very well in controlling 2 speeds. The lever has 2 stops for extension, pull it all the way out and the ram moves at about double speed, once it hits resistance release the lever and pull it again to the slow stop (about halfway for full force). However, what I think is really cool is that after contacting a log and getting the initial split at the slow speed, you can then pull the lever all the way out again and split through the full length of the log at the faster speed thus saving time.

Thanks
Josh



4





  Import Prince WLS-800 25 GPM 3/4" NTP in out 1/2" NPT work ports Small foot print D Tend wood splitter valve          $ 88.00


5

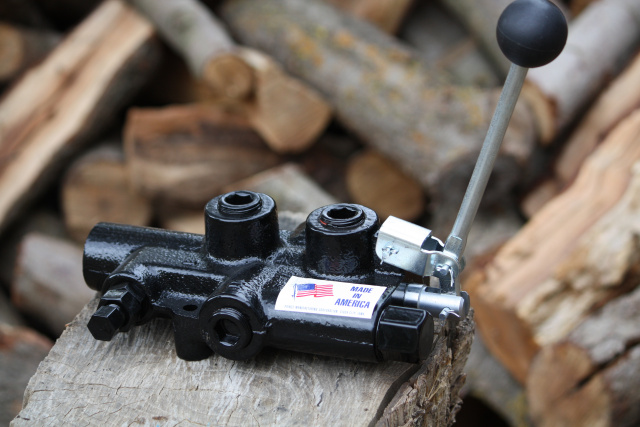

Prince LS-3000 2 D Tent Log wood Splitter Valve www.splitez.com


               Prince Log splitter DeTent valve  Made in the U.S.A



     3/4" in and 3/4" NTP out  with 3/4" NTP working ports they are the large out let ports not the 1/2" ports  25 G.PM 2750 P.S.I

          LS-3000-2    Our price  $  89.00           11 #



     3/4" NTP in and 3/4"  NTP out  with 1/2"  NTP working ports    25 G.PM 2750 P.S.I

         LS 3000 1  Price  $ 87.00         11 #






6

         LS-3060-2



Prince LS-3000 2 D Tent Log wood Splitter Valve www.splitez.com


               Prince Log splitter D-Tent valve  Made in the U.S.A

         3/4" in and 3/4" NTP out  with 3/4" NTP working ports they are the large out let ports not the 1/2" ports  25 G.PM 2750 P.S.I

DeTent is  in port A next to handle LS-3060-2

Price  $ 120     Fits some Iron @ Oak Log Splitters






7

LS-3060-1


Prince LS-3000 2 D Tent Log wood Splitter Valve www.splitez.com


               Prince Log splitter D-Tent valve  Made in the U.S.A

         3/4" in and 3/4" NTP out  with 1/2 " NTP working ports 25 GPM MAX 2750 P.S.I

DeTent is  in port A next to handle LS-3060-1

BACK ORDER

   Fits some Iron @ Oak Log Splitters


8

LS-3040-1

Prince LS-3000 2 D Tent Log wood Splitter Valve www.splitez.com

LS-3040-1

4-way/3-pos  with 3 Pos Detent

3/4" In 3/4" out let ports  1/2 working ports

Price  $ 98.00     11#


9

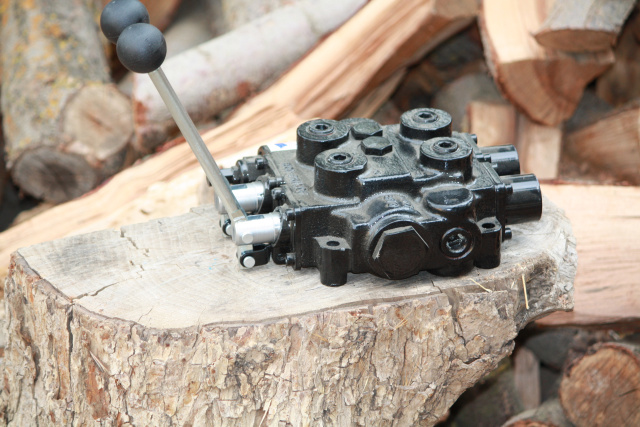

 Prince control valve 2 spool RD522CCAA5A4B1 power beyond


       Prince Control Valve- RD522CCAA5A4B1

2 Spool Valve- 25 GPM -4- way/3-pos-spring center both spools

Great valve for log lift and 4-way wedge

 3/4" in and out ports NTP

 1/2" working ports NTP

 Shipping weight 23 LBS

 Our  Price   $193.00

                         Catalog Pages



10

3/4 inch working ports

Prince Control Valve- RD523CCAA5A4B1

2 Spool Valve- 25 GPM -4- way/3-pos-spring center both spools

 3/4" in and out ports NTP

 3/4 " working ports NTP

 Power beyond

 Price  $ 219.00

 Shipping weight      23 LBS


11

 Prince Rd512ca5a4b1 Prince hydraulic valve



     Part  No.     RD512CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center  3/4 NTP  in & out 1/2 Working ports NTP.

Closed Center And Power Beyond Capability

 Our price $127.98         15#

                      8 or more $ 110.00 each


12

Prince Rd513ca5a4b1



     Part  No.     RD513CA5A4B1 30 G.PM  3000 P.S.I

1- Spool  4W / 3P Tandem spring center 3/4" NTP in & out 3/4" NTP Working ports

Closed Center And Power Beyond Capability

 Our price $ 127.98       15#
