  Hydraulic Power Units & Pump 12 & 24 Volt DC
Monarch Hydraulic Power Units 12 & 24 Volt DC



 3519 12 voilt monarch hydraulic pump


SALE   DC Pump Motors 12 & 24 Volt Call For Price.

If You Need A  24 Volt Power Unit Call

If you don't see your model Number Below call for quote.

1 - 661 - 248 - 5270


2

 Electric 4-Way/3-Way Valve



Monarch 3 Way Action "Snow Plow"

Hydraulic Pump PU-3593

Features:

• 12VDC 3 Way “Snow Plow” Pump.

• Consists of 2 Circuits: #1- Power Up, Hold,

Power Down#2- Power Up, Hold, Gravity

Down.

• 4.5" x 8" Poly Reservoir (76 Cu. In. usable).

• 1/4” NPT Ports.

• Adjustable Relief set at 2,000 PSI.

• 3/8” Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM at 1,750 PSI.

• Circuit is designed to be used with Snow Plows,

but can be used for applications requiring 1 Double

and 1 Single Acting Cylinder.

• Comes Factory-Wired with a Remote.

4-Way/3-Way DC Power Unit - Electric Controls

Model PU-3593   Price   $ 969.95

2-A

New Item Vertical



• Pump/motor/reservoir
• Externally adjustable system relief valve
• Check valve
• Cartridge valves are located outside the reservoir on manifold block.
• 4-way/3-way function
• C-1 & C2 plow angle 1200 PSI crossover relief
• C-3 2000 PSI
• .250" NPTF outlet ports
• Factory wired control station and cable
• Triple filtration: suction, high pressure return and valve
• Horizontal mounting
• Plow lift and Plow angle

Vertical mount Snow pump  Monarch PU3593LRV   $ Call


2 - B



3 Way/4 Way DC Power Unit - Manual Controls

  • Compact, cost-effective power for snow plow lift and angle operations.
  • Includes everything you need to power the job.
  • 3 way/4 way functionality for power lift and angle cylinders.
  • Included rod and ball handles.
  • 4 way valve is a tandem center rotary shear type valve, with 0.250 NPTF outlets.
  • The 3 way valve has a checked cylinder port and 0.250 NPTF outlet.
  • Valve assembly is fitted with electrical contact for synchronizing the valve wit the motor. The assembly has a suction filter.
    The 4 Way/3 Way DC Power Unit - Manual Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations.

    It features rod and ball manual control handles for each valve. The 3 way and 4 way valves are banked. The 4 way valve is a tandem center rotary shear type valve, with 0.250 NPTF outlets. The 3 way valve has a checked cylinder port and 0.250 NPTF outlet. The valve assembly is fitted with electrical contact for synchronizing the valve wit the motor. The assembly has a suction filter.
Product Common Use: Snow Plows






3

 Monarch Electric 3-Way Valve



Pump/motor/reservoir. Externally adjustable system relief valve and check valve. .375" NPTF outlet port. Suction filter. Large 5-1/2" x 6-1/2" x 19" reservoir 715 In.3 (3 gallon useable). Large dump valve 8 GPM. Control box with 6' cord.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI

3-Way Valve DC Power Unit - Electric Controls




Part Number Description Steel Reservoir Weight Price
PU303LRS 6-1/4" X 7-1/4" X 21" 3.1 Gallon 48 lbs.








4



Monarch No Valve









Pump/motor/reservoir. Externally adjust-able system relief valve and check valve. .375" NPTF outlet port. Suction filter. Horizontal mounting. Includes solenoid and strap. Pump .130 In.3/Rev. 12 Volt D.C.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI

DC Power Unit - No Valve







Part Number Description Steel Reservoir Weight Price
PU304 6" X  9"  1    Gallon Useable 31 lbs. $
PU304LR 6-1/4" X 7" X 15" 2.2 Gallon Useable 41 lbs. $






5



 Monarch Manual 4- Way Valve





Pump/motor/reservoir. Externally adjustable system relief valve. 4-way tandem center valve condenser equipped for synchronization with pump/motor. .250" NPTF valve outlet ports. Suction filter. Rod and ball handle. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
 Power units are preset at 2500 PSI
4-Way DC Power Unit - Manual Controls
  •



                                                                        Power Up - Power Down





Part Number Description Steel Reservoir Weight Price
PU310 6" X 9" 1     Gallon Useable 35 lbs.
PU310LR 6-1/4" X 7" X 15" 2.2  Gallon Useable 45 lbs.






6

 Monarch Manual 3-Way Release Valve (Metered)





Pump/motor/reservoir. Externally adjustable system relief valve. Check valve and normally closed manually operated release valve with built-in metering for “fine control” of lowering speed. Heavy duty motor start switch. .250" and .375" NPTF outlet ports. Suction filter. Rod and ball handle. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
 Power units are preset at 2500 PSI
3-Way Metered Release Valve DC Unit - Manual Controls






7

pu 311, pu311lr poly monarch hydraulic power up gravity down pumpPower Up - Gravity Down



Part Number Description Poly Reservoir Weight Price
PU311 5-1/2" X 6-1/2" X 10"   .86    Gallon 32 lbs.
PU311LR 5-1/2" X 6-1/2" X 19" 1.87    Gallon 35 lbs








8

Monarch Electric 3- Way Release Valve









Pump/motor/reservoir. Externally adjustable system relief valve and check valve. Solenoid actuated, normally closed release valve is mounted externally in the outside diameter of the pump base. Control station is included. Double filtration: suction filter and valve body. .375" NPTF outlet port. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI
3-Way DC Power Unit - Electric Controls



Power Up - Gravity Down





Part Number Description Reservoir Weight Price
PU319 5-1/2" X 6-1/2" X  10 "   .86  Gallon Useable   Poly 33 lbs.
PU319LR 5-1/2" X 6-1/2" X  19" 1.87  Gallon Useable   Poly 42 lbs $
PU319LRS 5-1/2" X 6-1/2" X  19" 1.87  Gallon Useable   Steel 42 lbs






9



 Monarch Manual 3-way Valve





Pump/motor/reservoir. Externally adjust-able system relief valve. Manually operated 3-way valve with cylinder port checked. Electrical contact for synchronizing valve and motor. .250" NPTF outlet. Rod and ball handle. Suction filter. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI
hydraulic 12 volt monarch pumps pu5003

Power UP - Gravity Down









Part Number Description Poly Reservoir Weight Price
PU5003 4-1/2" X 8" 1.36 Quarts 32 lbs.






10



 Manual 4-Way/3-Way Valve





Pump manual snow plow, motor, reservoir. Externally adjustable system relief valve. 4-way/3-way valve, banked. 4-way valve is tandem center rotary shear type with .250" NPTF outlets. 3-way valve has checked cylinder port and .250" NPTF outlet. Valve assembly is fitted with electrical contacts for synchronizing valve with motor. Rod and ball handles. Suction filter. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI
monarch hydraulic 12 vdc pump







Power Up - Gravity Down and

                                                                        Power Up _ Power Down







Part Number Description Reservoir Weight Price
PU5007 4-1/2" X 10" 1.8 Quart  Poly 35 lbs







11



Monarch Electric 4-Way Function





Monarch Electric 4-Way Function





Pump/motor/reservoir. Externally adjustable system relief valve. Check valve. Cartridge valves are located inside the reservoir. 4-way functionC-1 port is positively checked. .250" NPTF outlet ports. Factory wired control station and cable. Triple filtration: suction, high pressure return and valve. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI

4-Way DC Power Unit - Electric Controls


Power Up - Power Down

Part Number Description Reservoir Weight Price
PU642 5-1/2" X 6-1/2" X 10"  .86 Gallon Useable   Poly 39 lbs

PU642S 5-1/2" X 6-1/2" X 10"  .86 Gallon Useable   Steel 39 lbs.
PU642LR 5-1/2" X 6-1/2" X  19" 1.87 Gallon Useable   Poly 38 lbs
PU642LRS 5-1/2" X  6-1/2" X 19" 1.87 Gallon Useable    Steel 48 lbs








12



 Monarch





Pump snow plow, motor, reservoir. Externally adjustable system relief valve. Check valve. Cartridge valves are located inside the reservoir. 4-way functionC-1 port is positively checked. .250" NPTF outlet ports. Factory wired control station and cable. Triple filtration: suction, high pressure return and valve. Horizontal mounting.

Flow Rates for Hydraulic Power Units
Pressure
GPM
2000 PSI
1.3
2000 PSI
1.3
2000 PSI
1.3
Power units are preset at 2500 PSI

Only $ 969.954-Way/3-Way DC Power Unit - Electric Controls
snow plow hydraulic pump pu 3593



Power Up - Gravity Down and

                                                                        Power Up - Power Down or ANGLE







Part Number Description Reservoir Poly Weight Price
PM3593 4-1/2" X 8" 1.36 Quart 34 lbs $ 969.95






              1-661-248-5270   Phone



Toll Free   1-877-775-4839






13

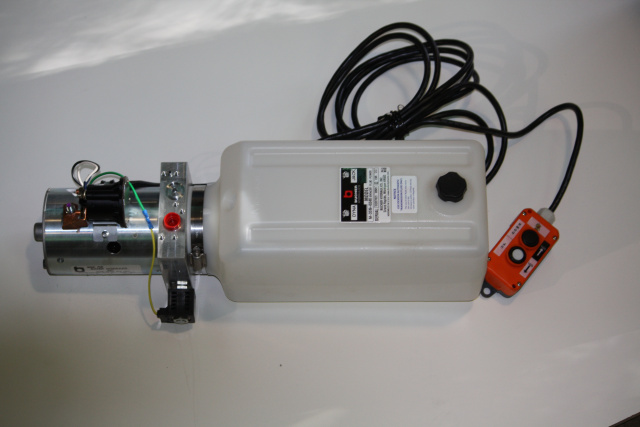

Poly 12 Volt Hydraulic Pump PM-319-6P

Features:

• 12VDC Power UpHold Gravity Down

Single Action Pumps.

• 6.7” x 6.7” x 13” Poly Reservoir.

• 3/8” NPT Ports.

• Adjustable Relief set at 2,000 PSI.

• 3/4” NPT Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM @ 1,750 PSI.

• Single Acting Cylinder Circuit.

• Great Pump for Dump Kit applications.





Model PM_319_6P  Price $360.00

Tank 6 qt Direct replacement for 5,- 7.5 and 10 Ton dump kits.





 pm 319 6p monarch hydraulic 12 volt dc pump




14

Monarch 12 Volt Hydraulic Pump PM-319

Features:

• 12VDC Single Action Pumps.

• 4.5” x 15” Steel Reservoir

(3 Qt. Capacity).

• Power Up, Hold, Gravity Down Circuit.

• 3/8” NPT Ports, Adjustable Relief set at

2,000 PSI.

• 3/4” NPT Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM @ 1,750 PSI.

• Single Acting Cylinder Circuit.

• Great Pump for Dump Kit applications.

monarch hydraulic dump hoist pump 12 volt



 Model PM-319   4.5" X 15" Steel Reservoir ( 3 Qt. Capacity )   Price Call




15



12 Volt Hydraulic Pump PM-319-10





 monarch hydraulic steel tank pump 12 vdc





Features:

• 12VDC Single Action Pumps.

• 10” X 10” X 10” Steel Reservoir.

• Power Up, Hold, Gravity Down Circuit.

• 3/8” NPT Ports, Adjustable Relief set at

2,000 PSI.

• 3/4” NPT Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM @ 1,750 PSI.

• Single Acting Cylinder Circuit.

• Great Pump for Dump Kit applications.





12 volt dc hydraulic pump



Model PM-319-10   ( 10” X 10” X 10” Steel Reservoir )   Price   $




16

  Monarch Dyna-Jack Hydraulic Pump PM319-5G

 5 gallon hydraulic reservoir hydraulic 12 volt dc pumps

Features:

• 12VDC Power Up, Hold Gravity Down

Single Action Pumps.

• 9x10x16 Poly Reservoir.

• 3/8” NPT Ports.

• Adjustable Relief set at 2,000 PSI.

• 3/4” NPT Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM @ 1,750 PSI.

• Single Acting Cylinder Circuit.

• Great Pump for Dump Kit applications.



5 Gallon Tank



model pm 319-5 gallon monarch pump 12 volt dc



Model PM319-5G    ( 9" X 10" X 16" Poly Reservoir  5 gallon tank )       Price . Call




17

Monarch Dyna-Jack Hydraulic Pump PM-3551

 12 volt hydraulic monarch pumps

Features:

• Power Up, Hold, Power Down Circuit.
• 6.7” x 6.7” x 13” Poly Reservoir

(540 cu. in. usable). 2.34 gallon

• SAE 6 Ports (9/16”-18).

• Adjustable Relief set at 2,500 PSI.

• Low Pressure Relief set at 600 PSI.

• 2.00 GPM PCFC to control Down Speed.

• 3/4” Filler Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM @ 1,750 PSI.

• Double Acting Cylinder Circuit.

• Unit has Low Pressure Relief to protect Cylinder on

Down Stroke and Flow Control to control Down Speed.

 hydraulic monarch pumps

Model PM-3551  2.34 gallon tank  Price                        $  Call 32#



Model PM- 3551-K  With Remote 15 Ft Cord Price   Call   33#










18



Monarch 12VDC - 2 Way Hydraulic Pumps

Models PM-3554K

NOT  FOR  DUMP  HOIST

IDEAL FOR SLIDE-IN WREACKERS & BALE SPIKE APPLICATIONS REQURING POWER IN & OUT



Features:


• Power Up, Hold, Power Down Circuit.
• Dual Pilot operated Checks for Load Holding.
• 9/16”-18 SAE Ports.
• Adjustable Relief set at 2,500 PSI.
• 3/4” NPT Filler Breather.
• Horizontal Mount.
• Pump delivers 1.25 GPM at 1,750 PSI.
• Double Acting Cylinder Circuit.
• Ideal for Slide-In Wreckers and Bale Spike

applications requiring Power in 2 Directions.



hydraulic monarch pump



 Model     PM-3554K:           6" X  9"             3 qt             Steel Reservoir        ( Below )   / 31#
 Model     PM-3554-6K         6" X 7" X 12"   6 qt             Steel Reservoir       ( Not shown  )      /   43#
 Model     PM-3554-5GK:   10" X 7" X 21"   5 Gallon    Steel Reservoir       ( Picture Above)  Price    /   55#




19





Monarch 12 Volt DC 4-Way

Hydraulic Pump  with Remote

Model PM-3530







Features:

• 12V DC.



• Horizontal Mount.



• 4 Button Pre-Wired Remote included.



• Circuit consists of 2 Separate Double Acting

Sections, Power Up, Hold & Power Down.



• Sections include Pilot-Operated Checks for

Positive Hold.

•  265 Cu inch. Polyethylene Reservoir.

• SAE 6 ( 9/16"-18)  Ports.



•  Adjustable Relief set at 2,000 psi.



•  Pump delivers 1.25 GPM at 1,750 psi.

Applications requiring Power in 4 Directions.

 12VDC monarch pump hydraulic power in 4 directions

 pm 3530 monarch 12 V DC hydraulic pump

Model PM-3530    1.15 gallon tank    Price


20

 monarch pump hydraulic 6 way

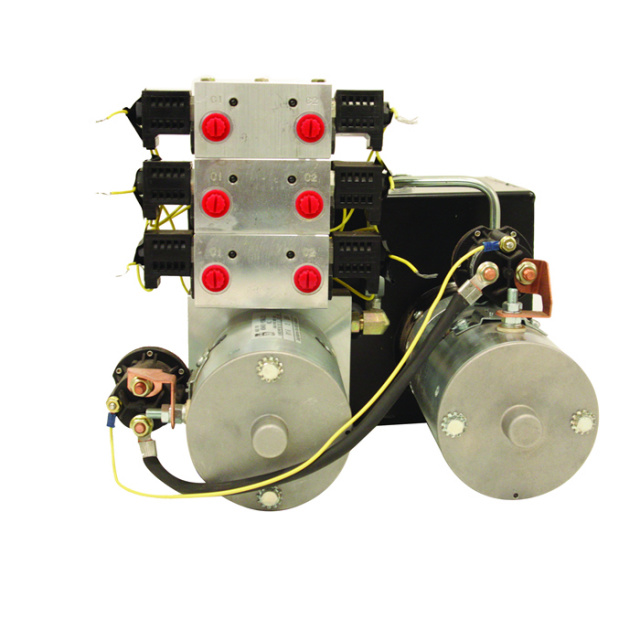

12 Volt DC 6-Way Hydraulic Pump 3530-3STK



Features:
• Circuit consists of 3 separate Double Acting

Sections: Power Up, Hold, Power Down.

Sections include Pilot-Operated Checks for



Positive Hold.

• 6.7” x 6.7” x 11” Poly Reservoir. (265 Cu. In.

usable).

• SAE 6 (9/16”-18) Ports.

• Adjustable Relief set at 2,000 PSI.

• 3/4” Breather.

• Horizontal Mount.

• Pump delivers 1.25 GPM at 1,750 PSI.

• Ideal for Wreckers and other applications

requiring Power in 6 Directions.

6 way hydraulic pump monarch 12 volt dc power pump





Model    PM3530-3STK  6-Way      1.15 gallon tank      Pump


21

12 Volt DC 6-Way High Volume Pump M3530-DD



Features:

• Consists of 2 Motors and 2 Pumps sharing



One Reservoir.

• 12VDC Standard Duty Motors with Start Solenoids.

 Circuit consists of 3 Separate Double Acting

Sections: Power Up, Hold, Power Down. Sections



include Pilot-Operated Checks for Positive Hold.

• 8” x 12” x 8” Reservoir (576 cu. in. usable).

• SAE 6 (9/16”-18) Ports, Adjustable Relief set at

2,000 PSI.

• 3/4” Breather.

• Horizontal Mount.

• Pumps deliver 2.5 GPM at 1,750 PSI.

• 3 Double Acting Circuits.

• Can be use for Wreckers and other applications

requiring Power both Directions.



Pump monarch wreacker

Model M3530-DD  6-Way Pump         Price




 Shipped by Motor Freight






22



wireless remote control

Model PS105 Pierce Wireless Remote.

Works with all Solenoid-activated 12V Motors. 2 Function Cordless Remote with 100’ range. Use

on Winches, Dump trucks, Trailers, Plows, etc. Remote requires one 9V battery (included).





You may also purchase these separately to add a second Remote, replace a lost Remote, or for







Model PS105 $149.00


23

 Water Resistant 2-Push Button Activated Remote



remote control for dc pumps

Model CO77K Water Resistant

Push Button Activated Remote.

Contained in an impact-resistant plastic Housing. O-Ring and Diaphragm seals keep

out the elements in even the most extreme conditions. 2 Button Internal Diode Remote including a 15’ Cord, with 3 Wire Leads for easy installation. Used on  Monarch, and other

2 Way Hydraulic Pumps having 1 Solenoid

and 1 Coil.









Model CPO77K          4 Wire Power up Hold with Power Down
Price $ 49.00



24

Water Resistant 2-Push Button Activated Remote

wire remote control monarch pumps

Model CP271MTE Water Resistant Push Button Activated Remote.

Contained in an impact-resistant plastic Housing.O-Ring & Diaphragm Seals keep out the elements in even the most extreme conditions. 2 Button Remote including a 15’ Cord, with 3 Wire Leads

for easy installation.

Model CP271MTE        3 Wire power up gravity down pumps
Price $ 39.95













We  accept Master Card, Visa, Discover Card,

   American Express and  Checks

        P & J Commercial Products  LLC.

          New E-mail:

             Splitez@Gmail.com

            1-661  248  5270   Phone
