Hydraulic log splitter model 25000 vertical log splitter
Log splitter hydraulic built by Splitez

Splitez model 25000 34 ton vertical  hydraulic log splitter and wood splitter

  Hydraulic Log splitter model 25000 This is one outstanding heavy duty Log Splitter from SPLITez.

  This machine is top of the line in vertical logsplitters and it is built to last like the rest of our commercial grade log splitters

  If you can find a better built vertical log splitter thats on the market today  give us a phone call  ( Toll free number 1-877-775-4839 ) we would like to see it.

 The 25000 series is our new commercial grade  firewood processor built  for customers who demand the best in log splitters.

  5 X 24" Prince  GLADIATOR 3000 psi welded hydraulic cylinder, with a  2 1/2" shaft, Crosstube ends with grease fittings 1 1/2 " pins



  40 pound per foot 8x8 I beam with reinforcement at top middle and bottom

  Standard 22 gallon and up to  44 gallon hydraulic system

  22 gal per min Barnes pump

  Honda power  GX 13 hp standard

  Kohler Engines are now a option



SPLITez new 34 ton vertical  hydraulic log splitter, wood splitters

Model 25000 Hydraulic  log splitter, wood splitter, firewood processor













Hour meter

Tachometer

  • Oil flash alert ( Time to change oil in Honda engine )
  • Large commercial hydraulic oil filter on return  to tank
  • Suction strainer in tank before pump
  • Tank breather large
  • Cutting wedge Hot roll plow
  • Grease fittings for wedge slide plate
  • 530 x 12 tires
  • 5 lug wheel
  • 3500 Axel and hubs
  • cycle time 10 seconds

  • Splitez 25000 hydraulic  log splitter, wood splitters2" hitch or pintal hook
  • Safety chain
  • Log remover ( on the return stroke )





  • Leave in vertical position and put a  lock  on it  just another nice feature from SPLITez Log Splitters















    WITH 389 cm3 HONDA ENGINE AND 22 GALLON HYDRAULIC PUMP

     Shipping  weight approx. 1600 lbs

    Color is Old Cat Yellow or John Deer Green your choice ( All hydraulic cylinders are Prince)

   $5495.00

 OPTIONS

    Kholer Engines         call for price


   30"  cylinder  for 30" logs call for price.


   1/2" wear plate Top of H Beam                               $135.00


   27 Gallon hydraulic system additional  charge           $125.00


   50 gallon  system additional charge                       $450.00


   Electrical start additional charge of                          $345.00


     Hydraulic oil coolers with 12 volt fan call


   Honda GX. V Twin  24 hp O.H.V. Engine 670 cm 3 with 28 gallon per min two stage pump.  ( Option will increase  cylinder cycle time plus a lot more  H.P. )

  Option oil cooler Hydraulic

   50 gallon oil tank

   Call for price

 24 hp honda engeine, with 28 gallon per min. barnes hydraulic pump, Splitez hydraulic  log splitter34 tons of splitting force



  Wood Splitter, 50 gallon hydraulic system, 24 hp honda engine with 28 gallon per min pump

PHONE

1-661-248-5270

0rder line Toll Free

1- 877-SPLITez

1-877-775-4839

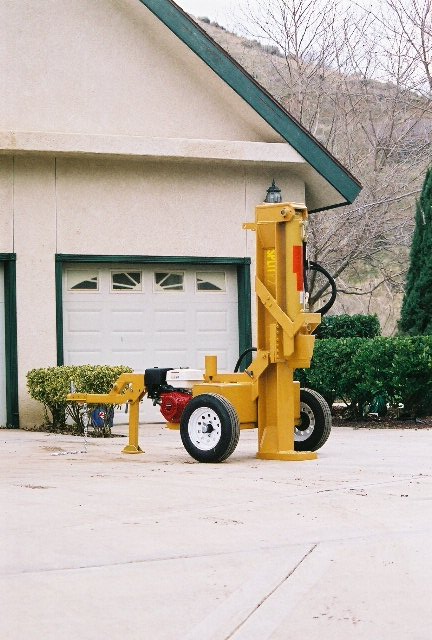

25000 Splitez  vertical log splitter

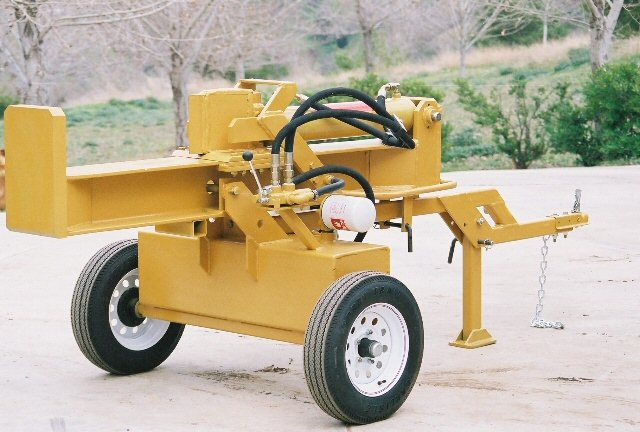

 Splitez25000 hydraulic honda wood splitter
