Commercial grade Heavy Duty, High performance, industrial strength, Horizontal  Log Splitter built one at a time  by Splitez  a name that you can trust.

 At Splitez we build 30 *& 42 Ton* BIG Boy Horizontal  log splitters Built to your specifications. We listen to your needs because one size is not for everybody.

    *  5" Bore Hydraulic Cylinder = Approx 30 Tons at 3000 PSI If this was an import rating it would be  37 + tons with a 5" Bore

      *  6" Bore Hydraulic Cylinder = Approx 42 Tons at 3000 PSI Import may be 50 + Tons with a 6" Bore

        BIG BOY is not a import-----  ALL SPLITez log splitters are Made in U.S.A

     There are a lot of log splitter Builders ?????-- Just compare all of Them to  A- Commercial grade Vertical or Horizontal  SPLITez

   If you like what we have to offer give us a call at  (661) 248 5270

Options*

Hydraulic log lift

Solid round bar log tray (not pipe) or all steel.

4 & 6 way and bundle firewood wedges

Hydraulic lift for wedge

Oil cooler Dual Fans

37 and 70 Gallon hydraulic tanks

By pass valve on return

O ring return filters

28 GPM 2 stage Pump

Single stage pumps

Electrical brakes

Honda 670 GX Series engine

38 Hp Kohler gas Engine with single stage pump.

Up to 40 Hp Kohler 3 cylinder Diesel liquid cooled engine

  Kubota Diesel Engine 48 H.P liquid cooled with double pump or single.

 Option 38 Hp Kohler gas Engine with single stage pump.

                                                  On return stroke Valve will open and help by pass hydraulic fluid away from valve ( less wear on control valve less restriction cooler oil  nice )

Electric Start for Gx series 389 Honda engineStroke 20"/30" / 36" / and 48" standard is 24"

4-1/2 Bore Hydraulic cylinder Prince Cross Tube

6 "  Bore 42  Ton Prince Gladiator Cross Tube

Option                                          Duel fan 12 volt hydraulic oil cooler

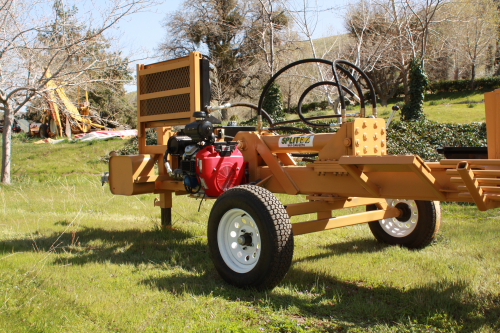

Standard BIG Boy Model

Honda 389 GX Series engine ( Option of electrical start )

30 Gallon hydraulic tank

22 GPM 2 stage Pump

70 GPM Return filiter

Suction strainer in tank

Single wedge

5 " Bore 24" Stroke  2-1/2" Shaft 30  Ton  Prince Gladiator Cross Tube hydraulic cylinders

Auto cycle valve Prince

14" Tires 5 lug

3500 Lbs hubs

Tongue  jack 10000 Lbs

Deck Height set To your Specification

1"Thick X 10" Wide universal steel mill plate  ( Welded to top of box tubing main frame )

6" X 8" X 1/2" Wall  Box tubing main Frame ( 42 LBS Per Foot )

*Price depends on options, some features are standard equipment on BIG Boy.

 BIG Boy U.S.A Made

 Built by SPLITez the name says it all SPLITez.

                                                                             Prince Gladiator  cross tube hydraulic with 1-1/2" pins

  Phone (661) 248 5270

  *Price depends on options, some features are standard equipment on BIG Boy.
