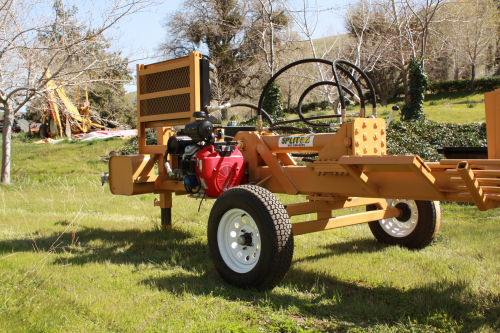

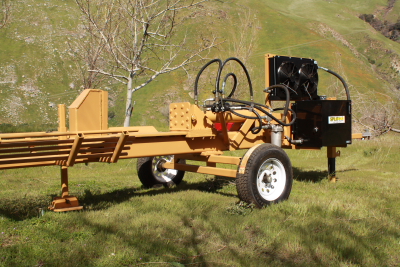

Commercial grade Heavy Duty, High performance, industrial Horizontal Log Splitter built one at a time by SPLITez a name that you can trust.
Splitez 30 & 42 Ton
Long Term Reliability
(661) 248 5270
Price Starting at $ 7195.00
On return stroke Valve will open and help by pass hydraulic fluid away from valve ( less wear on control valve, less restriction and cooler oil )

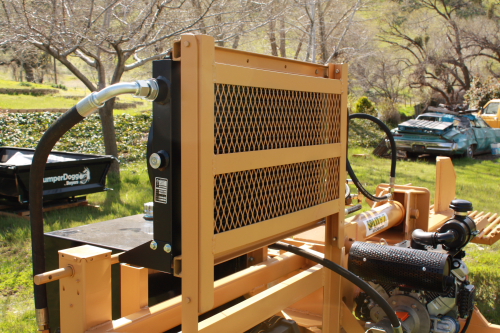

Duel fan 12 volt hydraulic oil cooler
- Standard BIG Boy Built to fit operator
- Motor mount left or right side = left side in picture
- Valves Left hand or right side = right side in picture

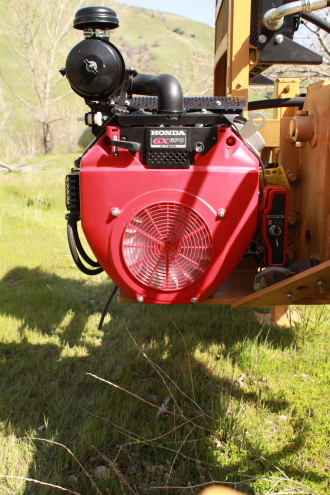

- Honda 389 GX Series engine ( Option of electrical start )
- 30 Gallon hydraulic tank
- 22 GPM 2 stage Pump

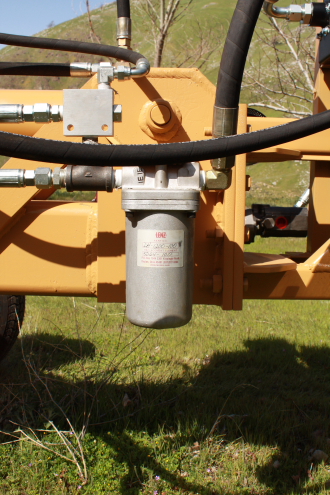

- 70 GPM Return filter spin on
- Suction strainer in tank
- Single wedge
- 5 " Bore 24" Stroke 2-1/2" Shaft 30 Ton Prince Gladiator Cross Tube hydraulic cylinders
- Auto cycle valve Prince
- 13" Tires 5 lug
- 3500 Lbs hubs
- Tongue jack 10000 Lbs
- Deck Height set To your Specification ( Most log splitters are to low or to tall for operator built to fit you )
- 1" Thick X 10" Wide universal steel mill plate ( Welded to top of box tubing main frame )
- 6" X 8" X 1/2" Wall Box tubing main Frame ( 42 LBS Per Foot )
- Standard Big boy $ 7195.00 Plus shipping
Options add to standard Big Boy price
Gx 690 Honda 28 GPM pump Elect start with battery $ 1285.00
Canister air cleaner for Gx 690 instead of flat air filter 175.00
Log lift Hydraulic 595.00
4 way wedge Hydraulic 595.00
6 way wedge 695.00
Log tray 495.00
Electric start for GX 389 or Kohler CH 440 349.00
Oil cooler mounted single fan 675.00
Oil cooler mounted duel fan 1300.00
30" stroke 600.00
14" Tires 89.00
Dump valve 200.00
0 ring return hydraulic filter 90.00
Up to 60 " stroke call for price
Larger Hydraulic tank call for price 70 gallons
6" Bore Hydraulic cylinders call for price
Kohler 38 Hp gas engine or 35 Hp Kubota 4 cylinder diesel .
For more options and price call 1 661 248 5270
BIG Boy U.S.A Made
Built by SPLITez the name says it all SPLITez.
Made in U.S.A Prince Gladiator cross tube hydraulic cylinder with 1-1/2" pins
Splitez 30 *& 42 Ton*
* 5" Bore Hydraulic Cylinder = Approx 30 Tons at 3000 PSI If this was an import rating it would be 37 + tons with a 5" Bore
* 6" Bore Hydraulic Cylinder = Approx 42 Tons at 3000 PSI Import may be 50 + Tons with a 6" Bore
BIG BOY is not a import----- ALL SPLITez log splitters are Made in U.S.A
Patent pending SPLITez pump system will increase hydraulic cylinder cycle time. Standard with 35 Hp Kubota Diesel Engine & Kohler 38 Hp gas engine.
Splitez system Test 1*
A SPLITez pump system with a 5 x 24 x 2.5 shaft with no load is at a absolute amazing sizzling 6.1 second cycle time with our revolutionary new system. Retract time with our system is a blistering 2.6 sec.
Splitez system Test 2 *
5" x 24" x 3.5" Shaft 5.3 sec. cycle time with no load. Retract time 1.8 sec.
Splitez system Test 3 *
4" x 24" x 2" Shaft 3.9 sec cycle time with no load. Retract time 1.7 sec.
* Testing was done with 40 Hp Kohler engine no load and we were conservative on pump size pump is rated at 3000 PSI.
Ask the competition if they can match that kind of performance.
System will be for sale as a kit or as a option on Big Boy models. This is only one system we can go bigger or smaller depending on HP.
If you are looking for fast Hydraulic cylinder cycle just call we can build you a pump system.
1-661 248 5270 Phone .
We accept Master Card, Visa, Discover Card,
American Express, and Checks
P & J Commercial Products
E-mail: Splitez@Gmail.com
1-661 248 5270 Phone
Toll Free Order line 1- 877 SPLITez
*Price depends on options, some features are standard equipment on BIG Boy.
